77. Which of the following is true about creating an arc?
If you press ENTER without specifying a point, the endpoint of the last drawn line or arc is used.
Arcs are drawn in a counterclockwise direction by default.
Hold down the Ctrl key as you drag to draw in a clockwise direction.
Hold down the Shift key as you drag to draw in a clockwise direction.
Answer
Correct Answer:
If you press ENTER without specifying a point, the endpoint of the last drawn line or arc is used. Arcs are drawn in a counterclockwise direction by default. Hold down the Ctrl key as you drag to draw in a clockwise direction.
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
78. _____ creates a geometric object that is parallel or concentric to the selected object at a specified distance.
Chamfer
Fillet
Offset
Parallel
Note: This Question is unanswered, help us to find answer for this one
Check Answer
79. To deselect an object from your selection set you need to:
Alt+Left Click on the object to be removed
Ctrl+Left Click on the object to be removed
Shift+Left Click on the object to be removed
Press ESC
Answer
Correct Answer:
Shift+Left Click on the object to be removed
Note: This Question is unanswered, help us to find answer for this one
Check Answer
80. What does the Match Properties (MATCHPROP) command do?
Applies the properties of one .DWG file to other .DWG files.
Applies the properties of one object to other objects.
Applies the properties of multiple objects to other objects.
All above
Answer
Correct Answer:
Applies the properties of one object to other objects.
Note: This Question is unanswered, help us to find answer for this one
Check Answer
81. Which of the following dimension types are supported in AutoCAD?
Vertical
Horizontal
Aligned
Angular
Answer
Correct Answer:
Vertical Horizontal Aligned Angular
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
82. Which of the following is/are true for Fillet command?
A fillet is an arc that is created tangent between two 2D objects.
If the two selected objects are on the same layer, the arc defined is created on that layer. Otherwise, the arc is created on the current layer.
When a circle is selected, the circle is not trimmed; the fillet drawn meets the circle smoothly.
Fillet command can not be used with 2 overlapping circles
Answer
Correct Answer:
A fillet is an arc that is created tangent between two 2D objects. If the two selected objects are on the same layer, the arc defined is created on that layer. Otherwise, the arc is created on the current layer. When a circle is selected, the circle is not trimmed; the fillet drawn meets the circle smoothly.
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
83. With ____, you can relocate the endpoints of objects that lie across or within a crossing selection window. Objects that are completely enclosed within the crossing window or that are selected individually, are moved.
TRIM
RESIZE
STRETCH
EXTEND
Note: This Question is unanswered, help us to find answer for this one
Check Answer
84. Which of the following commands cannot be undone?
XREF
SAVE
MOVE
BREAK
Note: This Question is unanswered, help us to find answer for this one
Check Answer
85. You have a drawing with several layers. In one of those layers you need to delete all objects.
What method allows you to make object selections based upon their layer?
Edit menu -> Select All -> then select the layer you need
Edit menu -> Find -> then select the layer you need
Answer
Correct Answer:
Use command QSELECT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
86. Which of the following commands allows you to rotate the view in 3D space with continuous motion?
3DORBIT
3DFORBIT
3DCORBIT
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
87. Which of the following is/are correct for dimensions?
Existing dimension can be split into two dimensions.
Arrange existing dimension and the newly inserted dimension into a baseline dimension type.
Assign Layer to dimension.
Specify dimension text angle.
Answer
Correct Answer:
Existing dimension can be split into two dimensions. Arrange existing dimension and the newly inserted dimension into a baseline dimension type. Assign Layer to dimension. Specify dimension text angle.
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
88. Which of the following system variable settings determines how points are displayed?
POINTSTYLE
PDMODE
PSTYLE
POINTSET
Note: This Question is unanswered, help us to find answer for this one
Check Answer
89. You have a closed Spline and you need to change it to an open Spline.
Use command SPLINEDIT with option /Open
Use command EXPLODE
Use command SPLINEDIT with option /Break
Use command ERASE
Answer
Correct Answer:
Use command SPLINEDIT with option /Open
Note: This Question is unanswered, help us to find answer for this one
Check Answer
90. Is it allowed to change the scale of the locked Viewport?
Yes, if you are in Paper space
Yes, by using command VPCLIP
Yes, if you are in Model space
No, it is not allowed
Answer
Correct Answer:
No, it is not allowed
Note: This Question is unanswered, help us to find answer for this one
Check Answer
91. You need to determine the total length of a polyline.
Use command DIST
Use command MEASURE
Check the Length parameter on polyline Properties Pallet
Use command DIM
Answer
Correct Answer:
Check the Length parameter on polyline Properties Pallet
Note: This Question is unanswered, help us to find answer for this one
Check Answer
92. ___ allows you to change the placement of the tools that you commonly use and to add new tools that can improve your productivity.
User Interface Editor
Ribbon Editor
Toolbar Controls Editor
Customize User Interface (CUI) Editor
Answer
Correct Answer:
Customize User Interface (CUI) Editor
Note: This Question is unanswered, help us to find answer for this one
Check Answer
93. If you copy and paste a Block from drawing A into drawing B that already has a Block with the same name but with different contents, the following will happen:
The Block from drawing A will be exploded
The Block from drawing B will be replaced
You will receive an error stating that the command is invalid
Contents of the Block from drawing A will be replaced by contents of the Block from drawing B
Answer
Correct Answer:
Contents of the Block from drawing A will be replaced by contents of the Block from drawing B
Note: This Question is unanswered, help us to find answer for this one
Check Answer
94. To combine two 3D Solids into a composite 3D Solid you need to:
Use command UNION
Use command INTERSECT
Use command POLYSOLID
Use command 3DMOVE
Answer
Correct Answer:
Use command UNION
Note: This Question is unanswered, help us to find answer for this one
Check Answer
95. What command allows you to dimension multiple objects at the same time?
dimlinear /object
qdim
dimcenter
dimordinate
Note: This Question is unanswered, help us to find answer for this one
Check Answer
96. Which of the following Shortcut Keys are not used in AutoCAD by default?
CTRL+ B
CTRL+ Z
ALT+L
F8
Note: This Question is unanswered, help us to find answer for this one
Check Answer
97. You need to insert ± symbol to the text while using command DTEXT. To do that you need to enter the following control code in the text:
\p
#p
%%p
\pm
Note: This Question is unanswered, help us to find answer for this one
Check Answer
98. Which of the following prompts are displayed after executing ZOOM command?
Center
Extend
Window
Corner
Answer
Correct Answer:
Center Extend Window
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
99. Which of the following is correct about modifying or updating the BLOCK? (choose all that apply)
The changes you make and save in the Block Editor replace the existing block definition, and all references to that block in the drawing are not updated.
An alternative way to modify a block definition is to create a new block definition, but enter the name of the existing block definition.
You can insert and explode an instance of the original block and then use the resulting objects in creating the new block definition.
Updating a block that was created in another drawing and then inserted into the current drawing does not trigger an automatic update (unlike inserting xrefs). To update a block that has been updated in another drawing, you must reinsert it.
Answer
Correct Answer:
An alternative way to modify a block definition is to create a new block definition, but enter the name of the existing block definition. You can insert and explode an instance of the original block and then use the resulting objects in creating the new block definition. Updating a block that was created in another drawing and then inserted into the current drawing does not trigger an automatic update (unlike inserting xrefs). To update a block that has been updated in another drawing, you must reinsert it.
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
100. Using PURGE command you can purge:
Materials
Dimension styles
Blocks
All above
Answer
Correct Answer:
All above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
101. Which of the following 3D gizmos are provided by AutoCAD?
3D Move gizmo
3D Draw gizmo
3D Rotate gizmo
3D Scale gizmo
Answer
Correct Answer:
3D Move gizmo 3D Rotate gizmo 3D Scale gizmo
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
102. You can use the following objects when creating a swept 3D Solid (SWEEP command):
2D Polylines
3D Splines
Lines
All above
Answer
Correct Answer:
All above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
103. If opening more than one drawing within the same AutoCAD session fails then you need to:
Set the SDI value to 0
Use command MWINDOW
Use shortcut ALT+TAB
File menu -> Drawing Properties…
Answer
Correct Answer:
Set the SDI value to 0
Note: This Question is unanswered, help us to find answer for this one
Check Answer
104. Which of the following scale factors cannot be applied while using the SCALE command?
0.5
1.8
-1
¾
Note: This Question is unanswered, help us to find answer for this one
Check Answer
105. Which of the following working environments are offered by AutoCAD? (choose all that apply)
Modal
Layout
Viewport
Paper
Answer
Correct Answer:
Modal Paper
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
106. __ contain rules or parameters, for how to change the appearance of the block reference when it is inserted in the drawing.
Blocks
Dynamic Blocks
Custom Blocks
Rule Blocks
Answer
Correct Answer:
Dynamic Blocks
Note: This Question is unanswered, help us to find answer for this one
Check Answer
107. Which of the following is/are true for Snap to a Grid Location?
The grid is a rectangular pattern of lines or dots that covers the entire XY plane.
Grid Snap restricts the movement of the crosshairs to intervals that you define.
Grid and Snap are independent settings but are often turned on at the same time.
Guides the movement of your cursor to specified polar angles and angle increments.
Answer
Correct Answer:
The grid is a rectangular pattern of lines or dots that covers the entire XY plane. Grid Snap restricts the movement of the crosshairs to intervals that you define. Grid and Snap are independent settings but are often turned on at the same time.
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
108. To completely remove DWG references (xrefs) and all associated information from your drawing, you need to:
Erase them
Detach them
Unload them
Explode them
Answer
Correct Answer:
Detach them
Note: This Question is unanswered, help us to find answer for this one
Check Answer
109. To create a 3D Sphere you need to:
Use command SWEEP
Use command EXTRUDE on a Circle
Use command 3DROTATE
Use command SHPERE
Answer
Correct Answer:
Use command SHPERE
Note: This Question is unanswered, help us to find answer for this one
Check Answer
110. To modify pattern of an existing hatch you need to:
EXPLODE the hatch
Use command HATCHSETORIGIN
Use command HATCHEDIT
Use command HPAT
Answer
Correct Answer:
Use command HATCHEDIT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
111. Which of the following is true about Tool Palettes? (choose all that apply)
Export and import tool palette files.
Use a DesignCenter shortcut menu to create a tool palette tab with predetermined content.
Create a Tool From an Object or Image.
Add Text to a Tool Palette.
Answer
Correct Answer:
Export and import tool palette files. Use a DesignCenter shortcut menu to create a tool palette tab with predetermined content. Create a Tool From an Object or Image. Add Text to a Tool Palette.
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
112. As you create or move objects, you can use __ to restrict the cursor to the horizontal or vertical directions relative to the user coordinate system (UCS).
Grid Snap
polar tracking
Ortho Mode
object snaps
Answer
Correct Answer:
Ortho Mode
Note: This Question is unanswered, help us to find answer for this one
Check Answer
113. ___ sets an invisible rectangular boundary in the drawing area that can limit the grid display and limit clicking or entering point locations.
GRID
VIEWPORT
LIMITS
VIEW
Note: This Question is unanswered, help us to find answer for this one
Check Answer
114. A block is essentially a block definition that includes: (choose all that apply)
block name
block geometry
location of the base point to be used for aligning the block when you insert it
block layer
Answer
Correct Answer:
block name block geometry location of the base point to be used for aligning the block when you insert it
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
115. Which of the following is correct for drawing templates? (choose all that apply)
Drawing template files store default settings, styles, and additional data.
They have .dwg extenstion
You can quickly start a new drawing file based on the drawing template file
You can create custom drawing templates files
Answer
Correct Answer:
Drawing template files store default settings, styles, and additional data. You can quickly start a new drawing file based on the drawing template file You can create custom drawing templates files
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
116. Which of the following objects that are on the DEFPOINTS layer can be printed?
Rotated Dimension
3D Solid
Closed Polyline
None of the above
Answer
Correct Answer:
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
117. Which of the following features does AutoCAD LT not support as compared to AutoCAD?
3D Modeling
Data extraction to tables
Express tools
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
118. Which system variable command would you use so that temporary prompt lines are displayed when an undocked command window is set to
display. What is the maximum value of number of prompt lines that could be displayed ?
Answer
Correct Answer:
VARPROMPTLINES,100
Note: This Question is unanswered, help us to find answer for this one
Check Answer
119. Which of the tools can be used to create smart break and maintain associative dimensions if you have dimension lines
crossing?
Answer
Correct Answer:
Dlmbreak tool
Note: This Question is unanswered, help us to find answer for this one
Check Answer
120. If you attached a DWF file in your current drawing then, which of the following command cannot be used/performed on the attached image?
A. Detach
B. Unload and reload
C. Bind
Note: This Question is unanswered, help us to find answer for this one
Check Answer
122. While editing some of the saved drawings. there appears an error message "the Ribbon doesn have any tabs or panels'currently loaded”. What will make the ribbon button reappear?
By uninstalling some of the third party applications from AutoCAD Exchange.
By typing Menu in command prompt and selecting Acad.cuix and launching it.
Answer
Correct Answer:
By typing Menu in command prompt and selecting Acad.cuix and launching it.
Note: This Question is unanswered, help us to find answer for this one
Check Answer
123. You are working on a Section object in Autocad 2016, Which of these will not be contained in a slice type for this object?
Parallel front section plane
Parallel back section plane
Jogs
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
124. Arrange the following set of steps in order that are required to set the Resize style of a ribbon panel
1. Clicking the + next to ribbon tab containing the ribbon panel to be changed
2. Clicking the + next to the tabs node in order to expand it
3. Opening the customize tab, cust
Comization in pane. clicking the + next to the ribbon tab in order to expand it4. Selecting the ribbon panel that is needed to be changed
5. Opening the Properties pane then Resize Style box, selecting an option from (Collapse as Needed, Never Collapse, or
Collapse Last)
Answer
Correct Answer:
3,2,1,4,5
Note: This Question is unanswered, help us to find answer for this one
Check Answer
125.
Assume that you are using a large drawing. In this drawing. there is a layer that you would not be accessing for some time.
What icon would you be clicking if you would not want to see them for a while?
Note: This Question is unanswered, help us to find answer for this one
Check Answer
126. While you are editing the dimensions using GRIPS. which of the following operations can be performed?
A. Relocate the dimension origin.
8. Move, rotate, copy, mirror, or scale the dimensions
C. Position the text anywhere along the dimension line.
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
127. You are using grips to edit objects. Determine which of the following command will not be available to you?
Join
Stretch
Rotate
Lengthen
Note: This Question is unanswered, help us to find answer for this one
Check Answer
128.
You have chosen the geometric object as given here in the diagram. For which of these use cases will you NOT be able to use this geometric shape?
1:Long continuous paths for which the total length need to be calculated
2:Figures that possess segments that are of fixed width
3:Diagrams that have pipes
Answer
Correct Answer:
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
129. When using multiline text you want to save your settings for future use. Which of the following commands can be used to do
so?
Note: This Question is unanswered, help us to find answer for this one
Check Answer
130.
Which of the two given diagram indicate a mode in which you specify an angle by means of two points?
What is the method associated with the diagram that is drawn?
Answer
Correct Answer:
B, Orthogonal locking
Note: This Question is unanswered, help us to find answer for this one
Check Answer
131. You are moving from a printing device that is dimensional to a printing device that is dimensionless. What system variable
would you need to use to control the plot scaling on this device?
Answer
Correct Answer:
RASTERDPI
Note: This Question is unanswered, help us to find answer for this one
Check Answer
132. It is required that you ensure that your current drawing file is reviewed by someone in a remote location. Which of the following
is the most appropriate method to do this?
Share a PDF created from the drawing file
Export the drawing as a Design Web Format file
Use the Autodesk A360 web application
Any of the above can be done
Answer
Correct Answer:
Use the Autodesk A360 web application
Note: This Question is unanswered, help us to find answer for this one
Check Answer
133. Which of the following statements regarding Scaling methods are true?
A) The Original Method allows you to create geometry, annotate, and print from model space.
8) The Layout Method allows you to create geometry and annotate in model space, but you cannot print from layout.
C) The Annotative Method allows you to create geometry in model space, and can be printed from the layout.
Answer
Correct Answer:
Both A & c
Note: This Question is unanswered, help us to find answer for this one
Check Answer
134. Which of the following methods in AUTOCAD can be used for specifying the locations of points when we create planar geometric entities?
1) Direct Distance entry technique
2) interactive method
3) Coordinate Command Method
4) User Coordinate system
Note: This Question is unanswered, help us to find answer for this one
Check Answer
135. You are working with autocad 2016. You come across a stb plot style table while working on a design. If you are given the
following statements with respect to the file mentioned above comment on their validity?
S1: The file is for a named plot style table
S2: It can be used to plot objects independent of their colour
Answer
Correct Answer:
51: True
S2: True
Note: This Question is unanswered, help us to find answer for this one
Check Answer
136. You utilize the CONVERTPSTYLES command to make changes to a drawing in AutoCad 2016. When this is done the value of a
certain system variable is set. Determine the value of this variable if it is color dependent?
Note: This Question is unanswered, help us to find answer for this one
Check Answer
137. You need to convert lines and arcs to a polyline. Which of the following alternatives is most suitable in the given scenario?
Polyline edit, convert option
Polyline edit, Join operation
Polyline edit, Union option
Polyline edit, Edit option
Answer
Correct Answer:
Polyline edit, Join operation
Note: This Question is unanswered, help us to find answer for this one
Check Answer
138.
While working with autocad 2016, you can set the hatch draw order relative to other objects. Which of the following alternatives correctly determines the hatch draw order for the given diagrams?
O 1. Send to Back
2. Bring to Front
0 1. Bring to Front
2. Send to Back
Bring In Front of Boundary
1. Bring in Front of Boundary
Answer
Correct Answer:
1.Send Behind Boundary
Bring In Front of Boundary
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
139. While working on AutoCAD 2016 you used the system variable GFCLR2 to add second color in the the two color gradient fill. Given here are some values that you can give to this. Which of these is/are not valid?
1:RGB:100,111,260
2:RGB:000,200,240
3:1
Note: This Question is unanswered, help us to find answer for this one
Check Answer
140. You want to be able to distinguish the point where three planes that have been detected for a point cloud meet in Autocad
2016. Which of these commands would you utilize in order to do so?
Answer
Correct Answer:
PCEXTRACTCORNER
Note: This Question is unanswered, help us to find answer for this one
Check Answer
141. You want to specify the coordinates for a point relative to a specific point in Autocad 2016. Which of
these symbols would you need to utilize while specifying coordinates in order to do so?
Note: This Question is unanswered, help us to find answer for this one
Check Answer
142. Consider the following statements regarding Express Tool MKLTYPE linetype. Which of these statements stand true ?
A) if a linetype with the same name as one that already exists in the selected LIN file is created the existing linetype is
overwritten, but the rest of the file remains intact.
B)lf a linetype begins with an empty segment, the program adds a dot to the beginning of the definition.
C)Polylines that are created with complex linetypes displays shapes better if PLINEGEN is 0.
Note: This Question is unanswered, help us to find answer for this one
Check Answer
143. While you are working on AutoCAD 2016 you find that there are some settings which control the working of command.You find that the LOCKUI is set to 10.What is the meaning of LOCKUl 10?
Docked and floating windows locked
Docked and floating toolbars are locked
Docked or anchored windows locked
Docked toolbars and panels locked
None of these
Answer
Correct Answer:
Docked and floating windows locked
Note: This Question is unanswered, help us to find answer for this one
Check Answer
144. While working on AutoCAD 2016 you wish to change
1. macros and tooltips for commands
2.control properties when using rollover tooltips and Quick Properties palette.
3. keyboard shortcuts and temporary overrides.
Which editor is used to perform the above changes?
Answer
Correct Answer:
None of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
145.
What does the blue color of the workspace lower tab signify?
it signifies active items
it signifies Items that are ready
it signifies items that are disabled
it signifies items that are default
Answer
Correct Answer:
it signifies active items
Note: This Question is unanswered, help us to find answer for this one
Check Answer
146. An object has been plotted at the following scale
plotted at 1.4=1
What can be said about the plotted image?
It will be larger than the original object
It will be smaller than the original object
It will be equal in size to the original object
It depends on other plot scale settings
Answer
Correct Answer:
It will be larger than the original object
Note: This Question is unanswered, help us to find answer for this one
Check Answer
147. You are working on a plot design in autocad 2016. You want to use a particular plot style that was used earlier. Which of these
folders would you look for in order to locate the appropriate plot style?
Answer
Correct Answer:
Plot Style Manager
Note: This Question is unanswered, help us to find answer for this one
Check Answer
148. While working on AutoCAD you set the MSLTSCALE to 1 so that while working on the editor tab the model space diagram does
not have any problemWhich linetype scale would be responsible for inconsistent line in the paper space?
Answer
Correct Answer:
PSLTSCALE
Note: This Question is unanswered, help us to find answer for this one
Check Answer
149. You have the drawing of the side view of a car. You would like to use a selection such that all objects that are present beyond
an area that is as long as the wheelbase of the car are not part of the selection set.
What type of selection would you use?
Answer
Correct Answer:
Window selection
Note: This Question is unanswered, help us to find answer for this one
Check Answer
150. You are working on a very sensitive design in Autocad 2016 and wish to temporarily disable the dynamic input feature in order
to do so. Which of these function keys would you utilize for this purpose ?
Note: This Question is unanswered, help us to find answer for this one
Check Answer
151. While you are on the current layer, which of the following operations cannot be performed?
Freezing the current layer
Turning off the current layer
Locking the current layer
Both a and b
Answer
Correct Answer:
Freezing the current layer
Note: This Question is unanswered, help us to find answer for this one
Check Answer
152. If the requirement is to enter 43.0o ( Diameter symbol (0)) which of the following alternatives need to entered?
43.0%%d
43.0%d
43.0%c
43.0%d
Note: This Question is unanswered, help us to find answer for this one
Check Answer
153. Why does a user generally face difficulty in finding out the boundary in the current View?
Because the fine tuning option for boundary behavior is not present
Because boundary retention ls Impossible while working on AutoCAD
Because lot of the graphic data is available in the current view.
None of the above
Answer
Correct Answer:
Because lot of the graphic data is available in the current view.
Note: This Question is unanswered, help us to find answer for this one
Check Answer
154. Which of these tools in AutoCAD will you access from the annotate ribbon panel,so that you can highlight the drawing?
Revamped Revision cloud
Polyline
Parametric
Wipeout
Answer
Correct Answer:
Revamped Revision cloud
Note: This Question is unanswered, help us to find answer for this one
Check Answer
155. It is given that you would like to temporarily disable all snapping and tracking. What shortcut would you use in autocad to do so?
SHIFT+D
SHIFT+E
SHIFT+L
SHIFT+M
Note: This Question is unanswered, help us to find answer for this one
Check Answer
156. While moving from autocad 2015 to 2016 you find that you are not able to use a certain command anymore due to it becoming
obsolete. Among the commands given here which of these could it be?
Answer
Correct Answer:
NEWTAB {‘3
Note: This Question is unanswered, help us to find answer for this one
Check Answer
157. As an Autocad expert you are drawing the outline of a floor and you wish to move the view in paperspace layout. Which of
these drawing views are referred to as projected views that can be moved in any layout?
Answer
Correct Answer:
Isometric
Note: This Question is unanswered, help us to find answer for this one
Check Answer
158. You are working on the precision of a model in AutoCad 2016. Which of these precision features are you likely to utilize if you
want to snap in to the nearest preset angle at a specified distance?
Answer
Correct Answer:
Polar tracking
Note: This Question is unanswered, help us to find answer for this one
Check Answer
159. If the requirement is to bend the extension lines through the specified angle, which of the following options of the dimension text edit tool can be used?
Transverse
Oblique
Update
Angle
Note: This Question is unanswered, help us to find answer for this one
Check Answer
160. You are recording an object snap in Autocad 2016. While taking the snaps you wish for it to ignore all hatch objects present in
the design. Which of these system variables need to be configured In order to do so?
Answer
Correct Answer:
OSOPTIONS
Note: This Question is unanswered, help us to find answer for this one
Check Answer
161. Which of the following commands need to be utilised in Autocad 2016 in order to view the plot style settings?
[Assume that the display plot style option has already been enabled]
Note: This Question is unanswered, help us to find answer for this one
Check Answer
162. While using the Hatch and gradient dialog box. what notation is used at unconnected endpoints of boundary objects to identify gaps in hatch boundary? How can these notations be removed?
Red circles, using Regen command
Blue Boxes.using Redraw command
Red boxes.using Redraw command
Blue Circles,using Regen command
Answer
Correct Answer:
Red circles, using Regen command
Note: This Question is unanswered, help us to find answer for this one
Check Answer
163. After completing the design or drawing on AutoCAD, when someone goes back to open or browse the same tab, the normal dialogue box doesn't open. Instead the dialogue appears In the command line. What is the reason behind this?
The FILEDIA system variable is not fixed in command prompt.
The FILEDIA system variable is fixed to O.
The platform needs to be updated which will automatically resolve the problem of dialogue box.
Answer
Correct Answer:
The FILEDIA system variable is fixed to O.
Note: This Question is unanswered, help us to find answer for this one
Check Answer
164. While using the plot command to plot a drawing to a printer. which of the following is the correct outcome when it is given that
Uncompressed Textures has been turned on?
The quality of images drops when they are plotted
The quality of Images remains the same when they are plotted
The quality of images increases when they are plotted
Answer
Correct Answer:
The quality of Images remains the same when they are plotted
Note: This Question is unanswered, help us to find answer for this one
Check Answer
165. When using AutoCAD 2016 you use DesignCenter to drag hatch patterns into your drawing. After
entering ‘ as search name in Hatch Pattern Files tab search option, what type of file is displayed?
(assuming you are searching for hatch patterns)
Note: This Question is unanswered, help us to find answer for this one
Check Answer
166. Which of the following command in AutoCAD 2016 allows you to insert content such as blocks. xrefs. and hatch patterns?
Note2-lt is different from what it was in the previous version as this command DesignCentre has been replaced with Autodesk
Seek.
Note: This Question is unanswered, help us to find answer for this one
Check Answer
167. Select the incorrect statement regarding the usage of exact angles(ORTHO and POLAR TRACKING) in autocad 2016?
When you are using Polar Tracking, you have the ability to specify angles as an absolute angle
Under polar tracing along with the increment angle, additional angle can be used.
The Ortho function will force the lines to be at right angles
Ortho and Polar Tracking can be used simultaneously.
Answer
Correct Answer:
Ortho and Polar Tracking can be used simultaneously.
Note: This Question is unanswered, help us to find answer for this one
Check Answer
168. Determine the incorrect statement. while giving a layer name in Autocad 2016?
The name should not exceed 256 characters
Space is allowed while giving a name to the layer
$character is not allowed
Both a and b
Answer
Correct Answer:
$character is not allowed
Note: This Question is unanswered, help us to find answer for this one
Check Answer
169. Which of the following command positions the drawing view without changing the zoom factor?
Zoom Command
Pan Command
Freeze Command {9
Lock command
Answer
Correct Answer:
Pan Command
Note: This Question is unanswered, help us to find answer for this one
Check Answer
170. The following statements are made regarding offsetting a surface.
A) The offset direction of a parallel image cannot be reversed
B) Offset works in only one direction at a time
C) When offsetting two surfaces it Is by default that the surface remain connected
Which of these statements are true?
Answer
Correct Answer:
None of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
171. Select the correct option regarding the statements given below about the ARC (Command)
Statement A: You can draw a counterclockwise arc from the start point using a center point and with a specified Included
angle.
Statement 8: A clockwise arc willzl}be drawn if the angle provided is Positive.
Only Statement A is correct
Only Statement B is correct
Both the statements are correct
Neither of the statements are correct
Answer
Correct Answer:
Only Statement A is correct
Note: This Question is unanswered, help us to find answer for this one
Check Answer
172. You are given the following cylindrical coordinates in Autocad 2016. Assuming that the dynamic input feature is turned on
select the coordinates in the choices provided that represent absolute coordinates?
Note: This Question is unanswered, help us to find answer for this one
Check Answer
173. Using the quick dimension command you can insert a group of dimensions in one shot. Determine which of the following is not one of the commands of Quick Dimension?
Continuous
Baseline
Baseline
Angular
Note: This Question is unanswered, help us to find answer for this one
Check Answer
174. Which application tool will you use in AutoCADZO16 to save the document in pdf format. which also supports unicode characters?
Printer/plotter drop down list
Batch plot tools
Sheet set manager
All of these
Both
Answer
Correct Answer:
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
175. Which of the following options does not contain duplicate elements?
Lists
Sets
Tuples
Strings
Answer
Correct Answer:
Both options b and c
Note: This Question is unanswered, help us to find answer for this one
Check Answer
176. You require to convert all of your blocks to files in order to use them in the current drawing. Which of the following commands can be used for the same?
MAKEBLOCK
CONVERTBLOCK
RBLOCK
WBLOCK
Note: This Question is unanswered, help us to find answer for this one
Check Answer
177. Which of these color options allow you to maximize the usage of colors available in TGA file format?
8 Bits(Grayscale)
24 Bits
TFA
TIFF
Note: This Question is unanswered, help us to find answer for this one
Check Answer
178. You turn polar tracking on for a certain plot drawing with the help of the respective function key. Which of the following function
key features will be disabled as a result of this ?
Note: This Question is unanswered, help us to find answer for this one
Check Answer
179. You need to draw lines and arcs where.the segments drawn using the same command should be considered as a single object. In such a scenario which of the following command is/ are suitable?
Answer
Correct Answer:
Polyline command
Note: This Question is unanswered, help us to find answer for this one
Check Answer
181. While rendering an AutoCAD drawing to the Autodesk cloud rendering service the background of your workspace gets replaced by a default gradient background.What could be the possible reason for such alteration?
The file is not saved properly
File extension is not compatible to Autodesk
The custom background less than 24 bit Q)
No such service available
Answer
Correct Answer:
No such service available
Note: This Question is unanswered, help us to find answer for this one
Check Answer
182. Which of the following are possible ways a command can be initiated?
St: Entering the command In dynamic input tooltip.
52: Making a selection on a ribbon and toolbar.
SB: Searching the command from the command table setting its value to 1 front 0.
S2 & S3 is true
S1 is false
S1& S3 is true
S2 is false
S1 & S2 is true
S3 is false
Answer
Correct Answer:
S1 & S2 is true
S3 is false
Note: This Question is unanswered, help us to find answer for this one
Check Answer
183. How can you prohibit switching of the drawings when drifting on the DWG tab thumbnail?
By setting the system variable FILETABTHUMBHOVER to 0.
By switching off the FILETABPREVIEW variable
By completely disabling the DWG file tabs. {9
All of the above
None of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
184. You would like to add layers for your drawing. Which of these is NOT recommended to do while performing this operation?
Creation of a new layer for objects that will not be seen
Creation of a new layer for notes that will not be printed
Using the default layer for some objects
Creating a layer for all fills
Answer
Correct Answer:
Using the default layer for some objects
Note: This Question is unanswered, help us to find answer for this one
Check Answer
185. You are required to create a large drawing of a train that has identical wheels. You have created a wheel that you would need to copy to the rest of the train.
For simplicity assume that the wheels occur with a constant gap between subsequent wheels.
What operation can you use to help you with this?
Using a repeating 'two points method' copy operation
Using a repeating 'Distance method' copy opera$gn
Use copy with ARRAY option
Use copy with LINKED option
Answer
Correct Answer:
Use copy with ARRAY option
Note: This Question is unanswered, help us to find answer for this one
Check Answer
186. Which of these function keys in Autocad 2016 would you utilize to toggle the running object snaps feature?
F1
F2
F3
F4
Note: This Question is unanswered, help us to find answer for this one
Check Answer
187. You want to acquire a tracking point for an object snap in Autocad 2016. Which of these keys would be useful for doing so ?
Tab
Ctrl
Shift
Alt
Note: This Question is unanswered, help us to find answer for this one
Check Answer
188. Which of the following is correct regarding the below statements:
51: You can move 3d objects only by selecting square grip.
$2: The Z-plane is unaffected even after using Mirror and rotate from the modify panel.
53: Currently active UCS is used to determine the local coordinate system of a newly created
S1 is true
S2 & $3 is false
S1 & S3 are true
$2 is false
$3 is true
S1 & $2 is false
Answer
Correct Answer:
S1.S2 & S3 are true
Note: This Question is unanswered, help us to find answer for this one
Check Answer
189. You are using AutoCAD 2016 to draw the blueprint of your project and using Advance steel 2016 to give details to your steel in the project but you are not able to save the drawing template file. Which of these tips could help you save your file?
Changing the template extension to .docx
Changing the template extension to SV$
Specifying the template measurements and saving it with same name
Specifying the template measurements and saving it with aejnher name
Answer
Correct Answer:
Specifying the template measurements and saving it with same name
Note: This Question is unanswered, help us to find answer for this one
Check Answer
190. You are working on certain coordination models in Autocad 2016. if you want to restrict the amount of black blended onto the coordination models attached to these. which of these features would you need to modify in order to do so?
Answer
Correct Answer:
Color fading
Note: This Question is unanswered, help us to find answer for this one
Check Answer
191. Which of the following is true about the functioning of locking layers?
1. Locked layer can be seen on the screen and new objects can be added to it
2. Changes can be made to the new/old objects
3. Changes cannot be made to the new/old objects I}
Note: This Question is unanswered, help us to find answer for this one
Check Answer
192.
Suppose the image on the left has been created but you want to insert it as the image on the right into the current drawing.
Determine the correct coordinates of the 2nd one?
Answer
Correct Answer:
X= 1
Y = -1
x: -1
Y = 1
Note: This question has more than 1 correct answers
Note: This Question is unanswered, help us to find answer for this one
Check Answer
193. While printing a drawing sheet you find out that you need to change the printable area of the sheet. In order to do so. which of the following operations would you be doing?
Assume that you are using a layout
Answer
Correct Answer:
Change the plot offset
Note: This Question is unanswered, help us to find answer for this one
Check Answer
194.
You have to create a drawing of a house plan. You would like to ensure that doors do not strike each other when opened and closed (when the house is created). Which of the following is the most convenient geometric object to use to do this?
Note: This Question is unanswered, help us to find answer for this one
Check Answer
195. How can one fix the problem of auto rotating of 30 object around its axis while someone is using the orbit command in AutoCAD?
Right Click to start the Shortcut Menu > Select Other Navigation Modes > Constrained Orbit
Right Click to start the Shortcut Menu > Constrained Orbit > Select Other Navigation Modes
Right Click to Other Navigation Mode > Constrained Orbit > Turning it off with fie Right Click
The problem can't be fixed
Answer
Correct Answer:
Right Click to start the Shortcut Menu > Select Other Navigation Modes > Constrained Orbit
Note: This Question is unanswered, help us to find answer for this one
Check Answer
197.
Which method of Handshaking uses additional wires in the cable between the plotter and computer?
Hardware handshaking
Software handshaking
Both a and b
None of the above
Answer
Correct Answer:
Hardware handshaking
Note: This Question is unanswered, help us to find answer for this one
Check Answer
198.

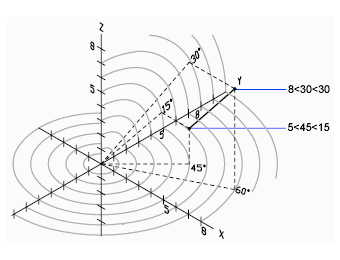

This question is based upon the figure shown below:
Question:
Which type of 3D coordinates is displayed in the given picture?
Cylindrical coordinates
Spherical coordinates
Cartesian coordinates
None of the above
Answer
Correct Answer:
Spherical coordinates
Note: This Question is unanswered, help us to find answer for this one
Check Answer
199.
What is not true about live sectioning behavior?
Live sectioning functions only on 3D objects and regions in model space
Live sectioning can only be active for one section object at a time
Turning off a section object�s layer turns off live sectioning
All of the above
Answer
Correct Answer:
Turning off a section object�s layer turns off live sectioning
Note: This Question is unanswered, help us to find answer for this one
Check Answer
200.
State True or False.
As shown in the picture, the symbol for projected tolerance is preceded by a height value, which specifies the minimum projected tolerance zone.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
201.
Which dialog box is displayed when you set the STARTUP system variable to 1 (on)?
Create New Drawing dialog box
Select Template Dialog Box
Both a and b
None of the above
Answer
Correct Answer:
Create New Drawing dialog box
Note: This Question is unanswered, help us to find answer for this one
Check Answer
202.
Which of the following is not a type of mapping?
Planar Mapping
Face Mapping
Spherical Mapping
Cylindrical Mapping
Answer
Correct Answer:
Face Mapping
Note: This Question is unanswered, help us to find answer for this one
Check Answer
203.
Which type of radial dimension measures the radius of an arc or circle, and displays the dimension text with the letter R in front of it?
Dimradius
Dimdiameter
Both a and b
None of the above
Answer
Correct Answer:
Dimradius
Note: This Question is unanswered, help us to find answer for this one
Check Answer
204.
Which option will you select to remove unused block definitions and decrease the drawing size?
Redraw
Purge
Regen
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
205.
State whether True or False.
The default value for Maxhatch is 10000.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
206.
In what type of text can fields not be inserted?
Text in table cells
Attributes
Tolerances
Attribute definitions
Answer
Correct Answer:
Tolerances
Note: This Question is unanswered, help us to find answer for this one
Check Answer
207.
Which option will you choose to open the Autodesk plotter manager?
From the File menu, choose plotter manager
On the command line, enter plottermanager
From the Tools menu, choose Options. On the Plot and Publish tab, choose Add or Configure Plotters
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
208.
Which keyboard shortcut you will use to display the macros dialog box?
ALT+F8
ALT+F4
ALT+F2
ALT+F1
Note: This Question is unanswered, help us to find answer for this one
Check Answer
209.
Which keyboard shortcut you will use to display the Visual Basic Editor?
ALT+F2
ALT+F9
ALT+F12
ALT+F11
Note: This Question is unanswered, help us to find answer for this one
Check Answer
210.
Which of the following elements in the Block editor can not be deleted, added, and modified?
Lookup tables
Grips
Visibility states
None of the above
Answer
Correct Answer:
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
211.
Menu swapping is not supported for which of the following interface elements?
Tablet menus
Image tile menus
Mouse buttons
None of the above
Answer
Correct Answer:
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
212.
Which among the following types of coordinates displays update as you move the cursor?
Static display
Distance and angle display
Dynamic display
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
213.
What can you do with the DesignCenter?
You can open drawing files in a new window
You can add content such as xrefs, blocks, and hatches to a drawing
You can update a block definition
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
214.
When does a temporary history entry state occur?
When you specify an output location and file name for rendering
When you render an image only to the Render Window without specifying an output file
Both a and b
None of the above
Answer
Correct Answer:
Both a and b
Note: This Question is unanswered, help us to find answer for this one
Check Answer
215.
State whether True or False.
Layer 0 can be deleted or renamed.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
216.
When is the lock icon displayed in the lower corner of the tool palette?
When a tool palette file is set with a read-only attribute
When a tool palette file is set for publishing
When a tool palette file is set for publish to web
All of the above
Answer
Correct Answer:
When a tool palette file is set with a read-only attribute
Note: This Question is unanswered, help us to find answer for this one
Check Answer
217.
Which of the following type of objects, is not supported by Associative Dimensions?
Hatches
Multiline objects
Objects with nonzero thickness
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
218.
Which diesel error message means syntax error as shown in the given picture?
A
B
C
D
Note: This Question is unanswered, help us to find answer for this one
Check Answer
219.
Which among the following hyperlinks stores the full path to a file location in your drawings?
Absolute hyperlinks
Relative hyperlinks
Both a and b
None of the above
Answer
Correct Answer:
Absolute hyperlinks
Note: This Question is unanswered, help us to find answer for this one
Check Answer
220.
Which part of a dimension displays extension lines as shown in the given picture?
A
B
C
D
Note: This Question is unanswered, help us to find answer for this one
Check Answer
221.
Which of the following default filters in the Layer Properties Manager displays all the layers on which objects in the current drawing are drawn?
All
All Used
Xref
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
222.
When you use grips to edit an object, what type of information does the dimensional input tooltip display?
Original length
Angle
The radius of an arc
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
223.
What is not true about ray traced shadows?
Ray traced shadows are more accurate than shadow-mapped shadows
Ray traced shadows have hard edges and accurate outlines
Raytracing takes longer to process, it produces more realistic, precise shadows
Ray traced shadows are calculated with a map
Answer
Correct Answer:
Ray traced shadows are calculated with a map
Note: This Question is unanswered, help us to find answer for this one
Check Answer
224.
State whether True or False.
The attribute extraction wizard creates a file with a.blk file extension.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
225.
State whether True or False.
Break, chamfer, fillet, lengthen and offset editing commands can be used on Multilines.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
226.
Which of the following options can not be offset?
2D polylines
Splines
Construction lines (xlines) and rays
None of the above
Answer
Correct Answer:
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
227.
State whether True or False.
The path has to be a line, arc, elliptical arc, circle, polyline, 3D polyline, or spline, to be linked to a target or a camera.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
228.
Which option you will choose to create solid filled areas?
Hatches with a solid hatch pattern
2D solids
Wide polylines or donuts
All of the above
Answer
Correct Answer:
Hatches with a solid hatch pattern
Note: This Question is unanswered, help us to find answer for this one
Check Answer
229.
Which option in the given picture displays parallel projection?
A
B
Both a and b
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
230.
Which of the given editing commands are not available for OLE objects?
Break
Chamfer
Fillet
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
231.
You can attach a digital signature to which of the following file types?
EXE and ZIP files generated by eTransmit
DWS files
DWG and DWT files
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
232.
Which of the following windows cannot be docked, anchored, or floated?
Properties palette
Tool palette
DesignCenter
None of the above
Answer
Correct Answer:
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
233.
Which keyboard shortcut you will select to toggle the command window?
CTRL+1
CTRL+9
CTRL+8
CTRL+7
Note: This Question is unanswered, help us to find answer for this one
Check Answer
234.
Which type of action can you use in a Dynamic block?
Flip
Array
Lookup
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
235.
Which of the following is not a type of dimensioning?
Angular
Rotational
Ordinate
Arc Length
Answer
Correct Answer:
Rotational
Note: This Question is unanswered, help us to find answer for this one
Check Answer
236.
Which option displays the major axis in the given picture?
A
B
C
D
Note: This Question is unanswered, help us to find answer for this one
Check Answer
237.
Which option displays my workspace as shown in the given picture?
A
B
C
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
238.
Autocad does not provide Plotter drivers to which type of files?
DXB file format
Raster file formats
Adobe PDF
None of the above
Answer
Correct Answer:
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
239.
Which option is not available in AutoCAD2007 to repair a damaged drawing file?
Recover
Audit
Check
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
240.
Which among the following is not a state of section objects?
Section Plane
Section Size
Section Boundary
Section Volume
Answer
Correct Answer:
Section Size
Note: This Question is unanswered, help us to find answer for this one
Check Answer
241.
Which among the following objects can not be used as the cutting plane for slicing a solid?
2D splines
2D polyline segments
Circular
None of the above
Answer
Correct Answer:
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
242.
Which type of material is/are available for realistic and realistic metal templates?
Reflection maps
Bump maps
Opacity maps
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
243.
Which referencing method uses the customization group and element ID?
Absolute
Relative
Both a and b
None of the above
Answer
Correct Answer:
Both a and b
Note: This Question is unanswered, help us to find answer for this one
Check Answer
244.
Which option will you select to attach drawing references (Xrefs)?
Use Externalreferences command
Use Xattach
Use DesignCenter
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
245.
State True or False.
DWF passwords are not case sensitive but DWG passwords are.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
246.
Which of the following types of files can be used as maps?
TGA
PCX
PNG
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
247.
Which of the following plot style table files have an .stb extensions?
Color dependent
Named
Both a and b
None of the above
Answer
Correct Answer:
Both a and b
Note: This Question is unanswered, help us to find answer for this one
Check Answer
248.
Which AutoSnap tool is not turned on by default?
Marker
Tooltip
Aperture box
Magnet
Answer
Correct Answer:
Aperture box
Note: This Question is unanswered, help us to find answer for this one
Check Answer
249.
State whether True or False.
Dimensional input is available for ARC, CIRCLE, ELLIPSE, LINE, and PLINE.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
250.
Which type of light emits uniform parallel light rays in one direction only in AutoCAD2007?
Point Light
Spotlight
Distant Lights
All of the above
Answer
Correct Answer:
Distant Lights
Note: This Question is unanswered, help us to find answer for this one
Check Answer
251.
State True or False.
All settings for the sun except geographic location are saved per drawing, not per viewport.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
252.
State whether True or False.
You cannot use CONVTOSOLID with polylines that contain vertices with 0 width.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
253. State True or False.
Mesh components are comprised of vertices, faces, polygons, and edges.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
254.
In which conditions, can you make a layer, the current layer?
When it is frozen
When it is an xref-dependent layer
When it is the default layer
All of the above
Answer
Correct Answer:
When it is the default layer
Note: This Question is unanswered, help us to find answer for this one
Check Answer
255.
Which among the following system variables controls the user defined area on the status line?
MSMSTATE
MYDOCUMENTSPREFIX
MTEXTED
MODEMACRO
Answer
Correct Answer:
MODEMACRO
Note: This Question is unanswered, help us to find answer for this one
Check Answer
256.
Which keyboard shortcut will you select to toggle polar tracking?
F11
F10
F9
F8
Note: This Question is unanswered, help us to find answer for this one
Check Answer
257.
Which of the following properties is not included within the Reference Manager?
Host drawing
Host version
Host size
Found path
Answer
Correct Answer:
Host version
Note: This Question is unanswered, help us to find answer for this one
Check Answer
258.
Which of the given changes cannot be undone by Layer Previous?
Renamed layers
Deleted layers
Added layers
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
259.
Which option is disabled when a nested reference is selected as shown in the given picture?
A
B
C
D
Note: This Question is unanswered, help us to find answer for this one
Check Answer
260.
Which keyboard shortcut will you select to cycle through the three isometric planes?
F7
F6
F5
F4
Note: This Question is unanswered, help us to find answer for this one
Check Answer
261. Which method will you choose to create 3D solids and surfaces from existing objects?
Sweeping objects along a path
Lofting through a set of curves
Slicing a solid
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
262.
Which of the following geometric objects can not be broken
Dimensions
Mlines
Regions
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
263.
You can not create Standards Checking for which of the given named objects?
Text styles
Linetypes
Layers
None of the above
Answer
Correct Answer:
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
264.
What does b stand for in the given example when you turn the automatic save option on as shown in the given picture?
b is the number of open instances of the same drawing file in the same work session
b is the number of open instances of the same drawing in different work sessions
b is a random number
None of the above
Answer
Correct Answer:
b is the number of open instances of the same drawing in different work sessions
Note: This Question is unanswered, help us to find answer for this one
Check Answer
265.
State whether True or False.
Tool palette files have an.xtp file extension.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
266.
The Drawing Recovery Manager displays a list of which drawing file types after a program or system failure?
DWG
DWT
DWS
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
267.
Which option you will choose to show or hide light glyphs?
Click Tools menu > Palettes > Tool Palettes
Click Tools menu > Palettes > Dashboard
Click Tools menu > Palettes > Properties
Click View menu > Render > Light > Light List
Answer
Correct Answer:
Click Tools menu > Palettes > Dashboard
Note: This Question is unanswered, help us to find answer for this one
Check Answer
268.
Which of the following tab you will choose to prevent signature status from being displayed for valid signatures, as shown in the picture?
A
B
C
D
Note: This Question is unanswered, help us to find answer for this one
Check Answer
269.
When can an Xref icon displayed in the lower right corner of the application window as shown in the picture?
When Xrefs are attached to the drawing
When Xrefs are detached to the drawing
When Xrefs are saved to the drawing
None of the above
Answer
Correct Answer:
When Xrefs are attached to the drawing
Note: This Question is unanswered, help us to find answer for this one
Check Answer
270.
Which of the following is the default mode state for shadows?
Sorted
Simple
Segment
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
271.
You can change a markup's status to which of the given options?
Question
For Review
Closed
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
272.
Which command is used on picture A to create a mesh or to acheive the result of picture B?
TABSURF
REVSURF
RULESURF
EDGESURF
Note: This Question is unanswered, help us to find answer for this one
Check Answer
273.
Which of the following settings are saved when you name and save a view?
Live section
Visual style
Background
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
274.
Which option you will select to set the relative path for all hyperlinks in a drawing?
Click File menu > Drawing Properties. On the General tab, enter a relative path in Hyperlink Base
Click File menu > Drawing Properties. On the Summary tab, enter a relative path in Hyperlink Base
Click File menu > Drawing Properties. On the Statistics tab, enter a relative path in Hyperlink Base
Click File menu > Drawing Properties. On the Custom tab, enter a relative path in Hyperlink Base
Answer
Correct Answer:
Click File menu > Drawing Properties. On the Statistics tab, enter a relative path in Hyperlink Base
Note: This Question is unanswered, help us to find answer for this one
Check Answer
275.
Which of the following wild card characters you will use to match any single character?
?
~
.
#
Note: This Question is unanswered, help us to find answer for this one
Check Answer
276.
State whether True or False.
When geometry acceleration is off, full shadows cannot be displayed.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
277.
Which of the following tool palettes settings is not saved with your profile?
Transparency
Auto-hide
Both a and b
None of the above
Answer
Correct Answer:
Both a and b
Note: This Question is unanswered, help us to find answer for this one
Check Answer
278.
Which of the following is not part of the Information title block?
Name of the current drawing
Date and Time
Size of the drawing
Operation being performed
Answer
Correct Answer:
Size of the drawing
Note: This Question is unanswered, help us to find answer for this one
Check Answer
279. Which option means that the sheet is in a special state as shown in the given picture?
A
B
C
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
280. State True or False.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
281. Which option will you choose to open the markup set manager?
Click Modify > Markup Set Manager
Click Insert > Markup Set Manager
Click Tools menu > Palettes > Markup Set Manager
All of the above
Answer
Correct Answer:
Click Tools menu > Palettes > Markup Set Manager
Note: This Question is unanswered, help us to find answer for this one
Check Answer
282. State whether True or False.
True
False
Note: This Question is unanswered, help us to find answer for this one
Check Answer
283. Which of the following Online content types include blocks for architectural, mechanical and GIS applications in the DesignCenter online folders?
Standard Parts
Manufacturers
Aggregators
All of the above
Answer
Correct Answer:
Standard Parts
Note: This Question is unanswered, help us to find answer for this one
Check Answer
284. Which of the given options displays the layer properties manager in the given picture?
A
B
Both a and b
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
285. Which of the given 3D viewing commands cannot be used, while working in paper space?
VPOINT
DVIEW
PLAN
All of the above
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
286. Which type of hatching style is shown in the given picture?
Normal
Outer
Ignore
None of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
287. Which of the following objects cannot be extruded?
Planar surfaces
Planar faces on solids
Polylines that have crossing
Traces
Answer
Correct Answer:
Polylines that have crossing
Note: This Question is unanswered, help us to find answer for this one
Check Answer
288. Which of the following is not a type of action override?
Distance multiplier
Block action
Angle offset
All of the above
Answer
Correct Answer:
Angle offset
Note: This Question is unanswered, help us to find answer for this one
Check Answer
289. Which switch suppresses the display of the Sheet Set Manager window on startup?
/set
/nossm
/pl
/ld
Note: This Question is unanswered, help us to find answer for this one
Check Answer
290. Which field displays pound signs as shown in the given picture?
An invalid field
A field for which no value is available
Both a and b
None of the above
Answer
Correct Answer:
An invalid field
Note: This Question is unanswered, help us to find answer for this one
Check Answer
291. Which of the following key is not used by Digital IDs?
Public key
Private key
Primary key
All of the above
Answer
Correct Answer:
Primary key
Note: This Question is unanswered, help us to find answer for this one
Check Answer
292. Which type of grip tool is shown in the given picture?
Move grip tool
Rotate grip tool
Both a and b
None of the above
Answer
Correct Answer:
Move grip tool
Note: This Question is unanswered, help us to find answer for this one
Check Answer
293. What is the command for counting the blocks?
count
bcount
blockcount
countblock
countb
Note: This Question is unanswered, help us to find answer for this one
Check Answer
294. Can You Use Order Trim with Hatch In Autocad 2014?
Yes
No
Note: This Question is unanswered, help us to find answer for this one
Check Answer
295. One way to group similar tools together on a tool bar is to use which type of button?
Group
Popup
Stackable toolbar
Flyout
Note: This Question is unanswered, help us to find answer for this one
Check Answer
296. The command 'osmode' allows for:
Returning osnaps to defaults.
Displaying current osnaps parameters in a settings dialog.
Quickly adjusting osnaps based upon a numerical code.
Toggling osnaps on and off.
Answer
Correct Answer:
Quickly adjusting osnaps based upon a numerical code.
Note: This Question is unanswered, help us to find answer for this one
Check Answer
297. How do you move objects drawn in paper space into model space and still maintain the graphic scale?
chspace
none of the above
all of the above
mvspace
copy/clip all objects, activate view port, then paste
Note: This Question is unanswered, help us to find answer for this one
Check Answer
298. What format is used to store the date and time in the DATE system variable?
Mayan calendar
Gregorian calendar
ISO 8601 Standard
Modified Julian Date
Answer
Correct Answer:
Modified Julian Date
Note: This Question is unanswered, help us to find answer for this one
Check Answer
299. To determine the size of the grid, what command do you use?
GRID
LIMITS
GRIDSIZE
GRIDLIMITS
Note: This Question is unanswered, help us to find answer for this one
Check Answer
300. What command would you use to convert a 3D solid into a mesh?
MESHSMOOTH
SOLID2MESH
MESH
CONVSOLID
Answer
Correct Answer:
MESHSMOOTH
Note: This Question is unanswered, help us to find answer for this one
Check Answer
301. Which command would you use to load a macro?
START
MACRO
APPLOAD
LOAD
Note: This Question is unanswered, help us to find answer for this one
Check Answer
302. What is the command for a circular polygon?
Type pline then C key
Type C then P
Type pcircle
Type donut
Answer
Correct Answer:
Type donut
Note: This Question is unanswered, help us to find answer for this one
Check Answer
303. Which command is used to convert a 3D surface into a solid?
SOLID
CONVTOSOLID
SOLIDCONVRT
THICKEN
Note: This Question is unanswered, help us to find answer for this one
Check Answer
304. What command allows you to edit single line text and dimension text?
MULTIEDIT
MTXTEDIT
EDITTEXT
DDEDIT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
305. What system variable stores the height of polysolids?
PSOLHEIGHT
PSHEIGHT
PSOLIDHEIGHT
POLLYHEIGHT
Answer
Correct Answer:
PSOLHEIGHT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
306. Which command would you use to adjust the smoothness of shaded and rendered objects?
RENDERRES
EDGERES
FACETRES
SMOOTHLINES
Note: This Question is unanswered, help us to find answer for this one
Check Answer
307. To change the justification of text without changing its location, which command would you use?
JTEXT
JUSTIFYTEXT
TEXTADJUST
JUSTTXT
Answer
Correct Answer:
JUSTIFYTEXT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
308. What is the system variable that determines the number of contour lines on a surface?
CNTRLINES
CONLINES
ISOLINES
LINECONTOUR
Note: This Question is unanswered, help us to find answer for this one
Check Answer
309. Which command would you use to quickly create a 2D representation of a 3D model?
SMASH
SOLFLAT
FLATSHOT
FLATVIEW
Note: This Question is unanswered, help us to find answer for this one
Check Answer
310. How would you quickly collect data from attributes in a drawing?
Use the DATAEXTRACTION command
Use the EXTRACT command
Use the DATA command
Use the EXPORTDATA command
Answer
Correct Answer:
Use the DATAEXTRACTION command
Note: This Question is unanswered, help us to find answer for this one
Check Answer
311. What command would you use to generate a JPEG format file of your drawing?
JPGGEN
EXPORTJPG
MAKEJPG
JPGOUT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
312. If you wish to load a library of Autolisp routines with each startup, which file should be modified?
acaddoc.lsp
mydoc.lsp
acadlisp.lsp
mycad.lsp
Answer
Correct Answer:
acaddoc.lsp
Note: This Question is unanswered, help us to find answer for this one
Check Answer
313. How do you maximize the drawing area, with menus and toolbars hidden
With Ctrl+0
With Ctrl+M
With Ctrl+1
With Alt+Shift
With Shift+0
Answer
Correct Answer:
With Ctrl+0
Note: This Question is unanswered, help us to find answer for this one
Check Answer
314. What variable coordinates the insertion points of autocad files?
0,0,0 insertpt point
base
Note: This Question is unanswered, help us to find answer for this one
Check Answer
315. How do you print a drawing to a PDF?
Export then select PDF
Print then select PDF
Publish then select PDF
None of these
Answer
Correct Answer:
Export then select PDF
Note: This Question is unanswered, help us to find answer for this one
Check Answer
316. How do you suppress the appearance of the file dialog box?
Set the FILEDIA system variable to 0
Set the FILEDIA system variable to OFF
Set the DIALOG system variable to OFF
Set the DIALOG system variable to 0
Answer
Correct Answer:
Set the FILEDIA system variable to 0
Note: This Question is unanswered, help us to find answer for this one
Check Answer
317. Which parameter do you set to determine the distance between turns on a helix?
Turn height
Turns
Twist
Twist height
Answer
Correct Answer:
Turn height
Note: This Question is unanswered, help us to find answer for this one
Check Answer
318. Putting a dash (-) in front of certain commands does what?
Saves information generated by the command to a log file
Suppresses the display of associated dialog boxes
Runs the command transparently
Brings up associated dialog boxes
Answer
Correct Answer:
Suppresses the display of associated dialog boxes
Note: This Question is unanswered, help us to find answer for this one
Check Answer
319. Which system variable determines if text is mirrored when using the mirror command?
MTEXT
MIRRTEXT
MIRRORTEXT
MRTEXT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
320. What keyboard entry allows snapping only to x-coordinates?
-x
:x
=x
.x
Note: This Question is unanswered, help us to find answer for this one
Check Answer
321. Which command will give you the X, Y, and Z coordinates of any point?
IDPOINT
POINT
ID
LOCATE
Note: This Question is unanswered, help us to find answer for this one
Check Answer
322. The command SHIFT+X Toggles _________.
Polar Tracking
Frozen Layer
Object Snap Tracking
Answer
Correct Answer:
Polar Tracking
Note: This Question is unanswered, help us to find answer for this one
Check Answer
323. How do you pause a macro for user input?
Place an asterisk (*) at the point you want the input
Place a foreslash (/) at the point you want the input
Place a hyphen (-) at the point you want the input
Place a backslash (\) at the point you want the input
Answer
Correct Answer:
Place a backslash (\) at the point you want the input
Note: This Question is unanswered, help us to find answer for this one
Check Answer
324. Which command would you use to manage defined user coordinate systems in a drawing?
MANAGEUCS
UCSMAN
UCSFOLLOW
UCSICON
Note: This Question is unanswered, help us to find answer for this one
Check Answer
325. To combine several files into one compressed folder which command do you use?
ZIP
SENDFILES
EMAIL
ETRANSMIT
Answer
Correct Answer:
ETRANSMIT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
326. To click and drag a 3D object to the desired height, which command would you use?
PRESSPULL
CLICKDRAG
EXTRUDE
DRAG
Answer
Correct Answer:
PRESSPULL
Note: This Question is unanswered, help us to find answer for this one
Check Answer
327. What objects can be affected by using the EDGE command?
Only those created using the 3DFACE command
Only meshes and converted solids
Only 3D primitives like cones and wedges
Only extruded surfaces and spheres
Answer
Correct Answer:
Only those created using the 3DFACE command
Note: This Question is unanswered, help us to find answer for this one
Check Answer
328. Where can you assign custom mouse button functions?
In the mouse button editor dialog box
In the acad.mnu file
In the CUI editor
In the acad.pgp file
Answer
Correct Answer:
In the CUI editor
Note: This Question is unanswered, help us to find answer for this one
Check Answer
329. The ARC command always draws the minor arc by default, in the
counterclockwise direction
clockwise direction
direction of the cursor
north direction
Answer
Correct Answer:
counterclockwise direction
Note: This Question is unanswered, help us to find answer for this one
Check Answer
330. What is the command to convert an mtext object into a text object
converttext
txt2mtxt
ctext
chtext
Note: This Question is unanswered, help us to find answer for this one
Check Answer
331. What command is used to create solids or surfaces by specifying a series of cross sections?
CROSSECT
SWEEP
EXTRUDE
LOFT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
332. The command that draws a solid by extending a profile shape along a path is called what?
3DSTRETCH
PRESSPULL
SWEEP
EXTRUDE
Note: This Question is unanswered, help us to find answer for this one
Check Answer
333. Putting an apostrophe (') in front of a command does what?
Runs the command transparently
Sends the command information to a log file
Cancels the previous command
Makes the results of the command temporary
Answer
Correct Answer:
Runs the command transparently
Note: This Question is unanswered, help us to find answer for this one
Check Answer
334. What do you call a saved set of objects that you can select and edit together?
Attribute
External reference
Block
Group
Note: This Question is unanswered, help us to find answer for this one
Check Answer
335. How do you specify the duration of a pause in a script?
Press the Pause key on the keyboard
Enter the DELAY command followed by the length in milliseconds
Enter the SLEEP command followed by the length in seconds
Enter the PAUSE command followed by the length in minutes
Answer
Correct Answer:
Enter the DELAY command followed by the length in milliseconds
Note: This Question is unanswered, help us to find answer for this one
Check Answer
336. What file allows a user to assign their own command for an action?
acad.mnu
acad.cui
acad.pgp
cad.cui
Note: This Question is unanswered, help us to find answer for this one
Check Answer
337. What command do you use to suppress hidden lines in a 3d wireframe model?
HIDELINES
HIDE
SUPPRESS
SHADE
Note: This Question is unanswered, help us to find answer for this one
Check Answer
338. What command is used to create a mesh by revolving a profile about an axis?
REVOLVSURF
RSURFACE
REVSURF
SURFREV
Note: This Question is unanswered, help us to find answer for this one
Check Answer
339. What can you type in to see the Text Styles dialog box?
Textstyles
Text
ST
TS
Note: This Question is unanswered, help us to find answer for this one
Check Answer
340. What is the file extension for a tool palette file?
.xtp
.xls
.pal
.tpf
Note: This Question is unanswered, help us to find answer for this one
Check Answer
341. When you create a polar array, in which direction is the array drawn?
Polar arrays can be drawn in either direction
The array is always drawn clockwise
The array is always drawn counter-clockwise
The array is always drawn left to right.
Answer
Correct Answer:
Polar arrays can be drawn in either direction
Note: This Question is unanswered, help us to find answer for this one
Check Answer
342. If you revolve a closed polyline, what is created?
3D mesh
Polysolid
3D solid
3D surface
Note: This Question is unanswered, help us to find answer for this one
Check Answer
343. What is the command used to make a slide file?
VSLIDE
SLIDE
MAKESLD
MSLIDE
Note: This Question is unanswered, help us to find answer for this one
Check Answer
344. What command do you use to draw freehand lines?
FREEHAND
SKETCH
DRAW
FREELINES
Note: This Question is unanswered, help us to find answer for this one
Check Answer
345. What happens when you hit CTRL+SHIFT+H?
Hides all displayed palettes including the command line
Issues the HIDE command and regenerates the drawing
Sets the HIDETEXT system variable to OFF
Starts the hidden message settings dialog box
Answer
Correct Answer:
Hides all displayed palettes including the command line
Note: This Question is unanswered, help us to find answer for this one
Check Answer
346. Using live sectioning will allow you to do what?
Move a section view in 3D model real time
Automatically create multiple section views
Show the outside of a 3D model
Create section tags in drawings
Answer
Correct Answer:
Move a section view in 3D model real time
Note: This Question is unanswered, help us to find answer for this one
Check Answer
347. What command would you use to convert a 3D solid into a hollow wall?
SHELLSOLID
REMOVE
SHELL
HOLLOW
Note: This Question is unanswered, help us to find answer for this one
Check Answer
348. What tool allows the user to select objects based on designated properties?
None
This has to be done manually.
Object Selection Filter
Quick Select
Answer
Correct Answer:
Object Selection Filter
Note: This Question is unanswered, help us to find answer for this one
Check Answer
349. What must you do for ordinate dimensions to display correctly?
Locate and orient a UCS to coincide with the datum
Move the object datum to 0,0
Use a dimension override.
Explode the dimensions and use a text editor
Answer
Correct Answer:
Locate and orient a UCS to coincide with the datum
Note: This Question is unanswered, help us to find answer for this one
Check Answer
350. Pressing 'F' when selecting objects will...
Allow you to find specific text
Finish the selection set
Allow you to draw a fence
Limit you to five objects
Answer
Correct Answer:
Allow you to draw a fence
Note: This Question is unanswered, help us to find answer for this one
Check Answer
351. What is the command to turn on/off the frame around an inserted raster image?
imageframe
iframe
frame
frameimage
Answer
Correct Answer:
imageframe
Note: This Question is unanswered, help us to find answer for this one
Check Answer
352. How do u paste a clip while editing a reference block in-place?
Copypaste is not allowed while editing a reference block in-place
Ctrl + P
Ctrl + V
Ctrl + Shift + V
Answer
Correct Answer:
Copypaste is not allowed while editing a reference block in-place
Note: This Question is unanswered, help us to find answer for this one
Check Answer
353. What command do you use to cause AutoCAD to print a hard copy of your drawing?
#NAME?
Cntr+P
PLOT
All of these
PRINT
Answer
Correct Answer:
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
354. How do you tell AutoCAD to automatically stack fractions?
Use the FRACTION command
Turn on AutoStack
Use the CTRL key when entering fractions
Set the STACKFRACTIONS system variable to 1
Answer
Correct Answer:
Turn on AutoStack
Note: This Question is unanswered, help us to find answer for this one
Check Answer
355. What command can be used to select object with common properties.
Select common
Select layer
Select similar
Select all
Answer
Correct Answer:
Select similar
Note: This Question is unanswered, help us to find answer for this one
Check Answer
356. What command do you use to create multiple parallel lines simultaneously?
OFFSETLINE
MULINE
MLINE
DRAWLINES
Note: This Question is unanswered, help us to find answer for this one
Check Answer
357. What can be entered at the command prompt to call the New Multiline Style dialog box?
MSTL
MLSTYLE
MUSTYLE
MULTISTYLE
Note: This Question is unanswered, help us to find answer for this one
Check Answer
358. If you create a custom tool palette in AutoCAD 2010, can it be used in AutoCAD 2005?
No, never
No, that is possible only for AutoCAD LT
Yes, always
Yes, but the tool palette file can only be shared on a local network
Answer
Correct Answer:
No, never
Note: This Question is unanswered, help us to find answer for this one
Check Answer
359. What command do you use to open an xref for editing?
REFOPEN
OPENX
EXOPEN
XOPEN
Note: This Question is unanswered, help us to find answer for this one
Check Answer
360. How does a user associate a dimension with an object?
CTRL + A
CTRL + D
CTRL + F
Reassociate Dimensions
Answer
Correct Answer:
Reassociate Dimensions
Note: This Question is unanswered, help us to find answer for this one
Check Answer
361. What is the file extension for plotter configuration files?
.PCF
.PMP
.PC3
.CFG
Note: This Question is unanswered, help us to find answer for this one
Check Answer
362. What method would you use to prevent objects on a particular layer from being edited, yet remain visible?
Freeze the layer in the current viewport
Freeze the layer
Turn the layer off
Lock the layer
Answer
Correct Answer:
Lock the layer
Note: This Question is unanswered, help us to find answer for this one
Check Answer
363. What command is used to change the point of view around the center of the viewport?
3DORBIT
3DROTATE
ROTATE
RVIEW
Note: This Question is unanswered, help us to find answer for this one
Check Answer
364. After creating a user coordinate system, which command line option allows you to save it for future use?
Object
Previous
Face
Named
Note: This Question is unanswered, help us to find answer for this one
Check Answer
365. When you create a new dimension style, what components can you not customize?
Primitives
Primary units
Arrows
Extension lines
Answer
Correct Answer:
Primitives
Note: This Question is unanswered, help us to find answer for this one
Check Answer
366. What is the file extension for AUTOSAVE files?
.asv
.svv
.sve
.sv$
Note: This Question is unanswered, help us to find answer for this one
Check Answer
367. If the ribbon is not visible, which command would you use to restore it?
RIBON
RIBBON
RIBBONON
RIBBONOPEN
Note: This Question is unanswered, help us to find answer for this one
Check Answer
368. What command do you use to modify an existing hatch or fill pattern?
HATCH
EDITHATCH
HATCHEDIT
HEDIT
Answer
Correct Answer:
HATCHEDIT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
369. What does the BATTMAN command do?
Accesses predefined websites
Modifies primitive solids
Draws batt insulation
Manages attributes for a selected block definition
Answer
Correct Answer:
Manages attributes for a selected block definition
Note: This Question is unanswered, help us to find answer for this one
Check Answer
370. How do you restore a drawing from a .bak file?
Use options in the AUDIT command
Rename the file extension to .dwg
Use options in the RECOVER command
Open the file and use the SAVEAS command
Answer
Correct Answer:
Rename the file extension to .dwg
Note: This Question is unanswered, help us to find answer for this one
Check Answer
371. What command would you use to combine two or more solids into one?
JOIN
COMPILE
COMBINE
UNION
Note: This Question is unanswered, help us to find answer for this one
Check Answer
372. How do you maintain an angle between two lines no matter which way one is turned?
Use an angular constraint
Freeze the layer those lines are on
Use an angular dimension
Lock the layer those lines are on
Answer
Correct Answer:
Use an angular constraint
Note: This Question is unanswered, help us to find answer for this one
Check Answer
373. Where do you load the hidden line option?
Linetype
Tools
Layers
Utilities
Note: This Question is unanswered, help us to find answer for this one
Check Answer
374. What command is used to calculate the perimeter and area of a polygon?
PERIMETER
AREA
PERIAREA
BOUNDRY
Note: This Question is unanswered, help us to find answer for this one
Check Answer
375. What information is contained in the HPANG system variable?
The name of the HP printer configuration file
The number of angular constraints in use
The hatch pattern angle
The state of the hidden properties dialog box
Answer
Correct Answer:
The hatch pattern angle
Note: This Question is unanswered, help us to find answer for this one
Check Answer
376. What does the 'limits' command do?
Selects the boundaries of the drawing for printing
Hides some of the faces in 3D modeling to prevent framerate problems
Sets a specified amount of vertices allowed in the drawing
Prevents lines from being created past the specified points
Answer
Correct Answer:
Selects the boundaries of the drawing for printing
Note: This Question is unanswered, help us to find answer for this one
Check Answer
377. What command is used to create a rectangular pattern in 3 dimensions?
ARRAYUP
ARRAY3D
3DARRAY
3DAR
Note: This Question is unanswered, help us to find answer for this one
Check Answer
378. Is 300 degrees the same as -60 degrees in a drawing?
Not always
No
Yes
Note: This Question is unanswered, help us to find answer for this one
Check Answer
379. When you type "d" on the command prompt, it will?
Display the Dimension Style Manager
make a dimension line
Answer
Correct Answer:
Display the Dimension Style Manager
Note: This Question is unanswered, help us to find answer for this one
Check Answer
380. What is the file extension for an AutoCAD template file?
DWG
DWF
DWT
TEM
Note: This Question is unanswered, help us to find answer for this one
Check Answer
381. What tool do you use to specify precise locations on objects?
Offset
Freehand sketches
Ortho mode
Object properties
Object snaps
Answer
Correct Answer:
Object snaps
Note: This Question is unanswered, help us to find answer for this one
Check Answer
382. When drawing on isometric planes, what is the easiest way to represent a circle?
Draw a rectangle with filleted corners
Use the Isocircle option of the ELLIPSE command
Draw freehand using the SKETCH command
Polar array an arc segment
Answer
Correct Answer:
Use the Isocircle option of the ELLIPSE command
Note: This Question is unanswered, help us to find answer for this one
Check Answer
383. What is the file extension of drawing templates?
BAK
DWG
DWT
DVB
Note: This Question is unanswered, help us to find answer for this one
Check Answer
384. What command is used to refresh the drawing area?
REFRESH
RFRESH
RGEN
REGEN
Note: This Question is unanswered, help us to find answer for this one
Check Answer
385. What does an arc symbol or hat above a dimension indicate?
That the dimension is an arc length, not an angle
That the dimension is an angle, not an arc length
That the dimension has been forced
That the dimension has been overridden
Answer
Correct Answer:
That the dimension is an arc length, not an angle
Note: This Question is unanswered, help us to find answer for this one
Check Answer
386. Which command do you use to place objects in a drawing that are on the windows clipboard?
PASTECLIP
PASTEBLOCK
PASTEORIG
All of these
Answer
Correct Answer:
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
387. For 2D drafting and Annotation mode, in what tab is the dimension command?
Annotation
Manage
View
Insert
Answer
Correct Answer:
Annotation
Note: This Question is unanswered, help us to find answer for this one
Check Answer
388. How do you switch from paper space to model space?
Set the TILEMODE system variable to 1
All of these
Enter MODEL at the command prompt
Click on the model space tab
Answer
Correct Answer:
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
389. What is a keyboard shortcut to start a block?
BC
BK
Shift+B
Ctrl+B
B
Note: This Question is unanswered, help us to find answer for this one
Check Answer
390. What does the "block" command do?
None of these
Prevents a line from being moved accidentally
Creates a box
Groups a set of lines together
Answer
Correct Answer:
Groups a set of lines together
Note: This Question is unanswered, help us to find answer for this one
Check Answer
391. Text, dimensions, tolerances, symbols, notes, and other types of explanatory symbols or objects that are used to add information to your model are __________.
parameters
annotations
constraints
Answer
Correct Answer:
annotations
Note: This Question is unanswered, help us to find answer for this one
Check Answer
392. What is a keyboard shortcut to zoom?
Shift+Z
Z or ZE
Z
ZE
Ctrl+Z
Note: This Question is unanswered, help us to find answer for this one
Check Answer
393. How do you create a circle using diameter?
There is no diameter option
AutoCAD draws the diameter automatically
Hit the D key
Hit the C key then D
Answer
Correct Answer:
Hit the C key then D
Note: This Question is unanswered, help us to find answer for this one
Check Answer
394. What is a shortcut for offset?
os
o
ofs
off
Note: This Question is unanswered, help us to find answer for this one
Check Answer
395. How can you end a command?
Press Enter Key
Select Another Command
All of these
Spacebar
Answer
Correct Answer:
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
396. If an Xref in your drawing gets changed, what should you do?
Reload it
Bind it
Detach it
Unload it
Answer
Correct Answer:
Reload it
Note: This Question is unanswered, help us to find answer for this one
Check Answer
397. What is the shortcut for line?
ctrl-LI
L+space
ctrl+L
LI+space
Note: This Question is unanswered, help us to find answer for this one
Check Answer
398. What command is used to attach a hyperlink to an object?
ATCHHYPER
HYPRATTACH
LINK
HYPERLINK
Answer
Correct Answer:
HYPERLINK
Note: This Question is unanswered, help us to find answer for this one
Check Answer
399. If you do more than one style of drafting, how would you store different environment settings?
Create a user profile for each environment needed
Have an installation of AutoCAD for each environment
Use different programs for each environment
Use different computers for each style of drafting
Answer
Correct Answer:
Create a user profile for each environment needed
Note: This Question is unanswered, help us to find answer for this one
Check Answer
400. When do you use the middle mouse button?
To pan or select
To pan or zoom
To move or copy objects
To zoom or select
Answer
Correct Answer:
To pan or zoom
Note: This Question is unanswered, help us to find answer for this one
Check Answer
401. Where do you make changes to a visual lisp routine?
Command window
Photoshop
MS Excel
Visual LISP editor
Answer
Correct Answer:
Visual LISP editor
Note: This Question is unanswered, help us to find answer for this one
Check Answer
402. How do you turn a poly line into a 3D object?
Extrude
Thickness
None of these
Drag the part with the mouse
Note: This Question is unanswered, help us to find answer for this one
Check Answer
403. Which of these is not a 3D modeling feature?
The view toolbar
Typing view
Material properties
All of these
Answer
Correct Answer:
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
404. What command would you use to separate a block into its individual components?
SEPARATE
BREAKBLOCK
BLOCKEDIT
XPLODE
Note: This Question is unanswered, help us to find answer for this one
Check Answer
405. How do you increase the magnification of the objects on the screen?
Use the MAKELARGER command
Use the ZOOM command
Press and hold the plus sign (+) key
Use the MAGNIFY command
Answer
Correct Answer:
Use the ZOOM command
Note: This Question is unanswered, help us to find answer for this one
Check Answer
406. The abbrevation WCS stands for ______________.
World Coordinate Service
Web Coordinate System
World Coorinate Symbols
World Coordinate System
Answer
Correct Answer:
World Coordinate System
Note: This Question is unanswered, help us to find answer for this one
Check Answer
407. Where should you go to turn off multiple layers at once?
Options Menu
Layer Manager
Layer Modifier
Individually select each layer and alter the properties
Answer
Correct Answer:
Layer Manager
Note: This Question is unanswered, help us to find answer for this one
Check Answer
408. When do you use object selection filters?
To select a set of objects based on one or more of their properties
To create blocks and viewports
To create drawing layouts and viewports
Answer
Correct Answer:
To select a set of objects based on one or more of their properties
Note: This Question is unanswered, help us to find answer for this one
Check Answer
409. When do you use the "Pan" command?
To move a view to a different position
To make multiple copies of an object
To zoom the current view
To change the user coordinate system
Answer
Correct Answer:
To move a view to a different position
Note: This Question is unanswered, help us to find answer for this one
Check Answer
410. How do you create a plot style table?
Modify an existing plot style table
From scratch
Use settings from a PCP or PC2 file
All of these
Answer
Correct Answer:
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
411. What is the purpose of the ortho command?
Restrict cursor movement to horizontal or vertical
Makes using the pointing device easier
Restrict cursor movement to 45∞ increments
Restricts movements of objects to circular paths
Answer
Correct Answer:
Restrict cursor movement to horizontal or vertical
Note: This Question is unanswered, help us to find answer for this one
Check Answer
412. What command would you use to join a series of line segments into a single line?
UNION
JOIN
BLEND
EDIT
Note: This Question is unanswered, help us to find answer for this one
Check Answer
413. What command is used to change drawing units?
dunits
drawu
units
drawunits
Note: This Question is unanswered, help us to find answer for this one
Check Answer
414. Turning a closed 2D polyline shape into a 3D shape can be completed by using which command?
Union
Explode
Subtract
Extrude
Note: This Question is unanswered, help us to find answer for this one
Check Answer
415. Where can you access the Modify tools?
Keyboard and tool bar but not pulldown menu.
Keyboard command
Tool Bar
Pulldown menu
All of these.
Answer
Correct Answer:
All of these.
Note: This Question is unanswered, help us to find answer for this one
Check Answer
416. Which function key issues the ORTHO command?
F1
F8
F2
F12
Note: This Question is unanswered, help us to find answer for this one
Check Answer
417. What does saving a file as a template do?
Saves all the settings that were used in that drawing for later use
Allows easy access from other programs like Solid Works
Prevents the current drawing from being modified
Creates a tracible border in the shape of the drawing
Answer
Correct Answer:
Saves all the settings that were used in that drawing for later use
Note: This Question is unanswered, help us to find answer for this one
Check Answer
418. what command do you use to create a filling?
HAT
HTC
HATCH
H
Note: This Question is unanswered, help us to find answer for this one
Check Answer
419. Can you move objects from one layer to another?
Only to invisible layers
Yes, always
No, never
Only in 3D mode
Answer
Correct Answer:
Yes, always
Note: This Question is unanswered, help us to find answer for this one
Check Answer
420. Which one is NOT a vaild type of unit?
Decimal
Open
Architectural
Metric
Note: This Question is unanswered, help us to find answer for this one
Check Answer
421. Which of these is an option when selecting what to plot in plot options?
All of the above
Window
Limits
Display
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
422. How many layers you can create?
Up to 100
One
Up to 5000
Up to 30
Infinite number
Answer
Correct Answer:
Infinite number
Note: This Question is unanswered, help us to find answer for this one
Check Answer
423. When do you use arrays?
To create multiple copies of objects in a pattern
To create blocks and viewports
To insert blocks
To create a symmetrical mirror image
Answer
Correct Answer:
To create multiple copies of objects in a pattern
Note: This Question is unanswered, help us to find answer for this one
Check Answer
424. What command lengthens a line to meet another line?
LENGTH
EXTEND
EXLENGTH
EXLINE
Note: This Question is unanswered, help us to find answer for this one
Check Answer
425. Which layer(s) will you most likely need?
Dimension
At least one for the objects
All of the above
Text
Answer
Correct Answer:
All of the above
Note: This Question is unanswered, help us to find answer for this one
Check Answer
426. What visual styles can you use?
Conceptual and realistic
3D hidden
2D wireframe and 3D wireframe
All of these
Answer
Correct Answer:
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
427. Can you create custom line styles?
Yes, always
No, never
Yes, but only for named views
Yes, but only one
Answer
Correct Answer:
Yes, always
Note: This Question is unanswered, help us to find answer for this one
Check Answer
428. What is the shortcut for move?
V+space
S+space
N+space
M+space
Note: This Question is unanswered, help us to find answer for this one
Check Answer
429. What is the shortcut for save?
ctrl+V
ctrl+VS
ctrl+SV
ctrl+S
Note: This Question is unanswered, help us to find answer for this one
Check Answer
430. If you are working in 2D, which axes are being used to form the workplane?
The XYZ axes
The XZ axes
The XY axes
The YZ axes
Answer
Correct Answer:
The XY axes
Note: This Question is unanswered, help us to find answer for this one
Check Answer
431. Does AutoDesk offer free educational copies of AutoCAD to students?
No
Yes
Note: This Question is unanswered, help us to find answer for this one
Check Answer
432. What items can you save in a workspace?
Menus
Toolbars
All of these
Palettes
Answer
Correct Answer:
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
433. What are examples of AutoCAD solid primitives?
Cone and cylinder
Sphere and torus
All of these
Box and pyramid
Answer
Correct Answer:
All of these
Note: This Question is unanswered, help us to find answer for this one
Check Answer
434. What can you do with the stretch command?
Relieve cramps in your hands and arms
Make objects longer or shorter
Stretch the AutoCAD window across multiple monitors
Make text bigger
Answer
Correct Answer:
Make objects longer or shorter
Note: This Question is unanswered, help us to find answer for this one
Check Answer
435. What command would you use to copy objects into a regularly spaced pattern?
PATTERN
COPYOBJ
ARRAY
COPY
Note: This Question is unanswered, help us to find answer for this one
Check Answer
436. Which command is used to reverse the action of another command?
UNDO
OOPS
BACKUP
REVERSE
Note: This Question is unanswered, help us to find answer for this one
Check Answer
AutoCAD MCQs | Topic-wise
